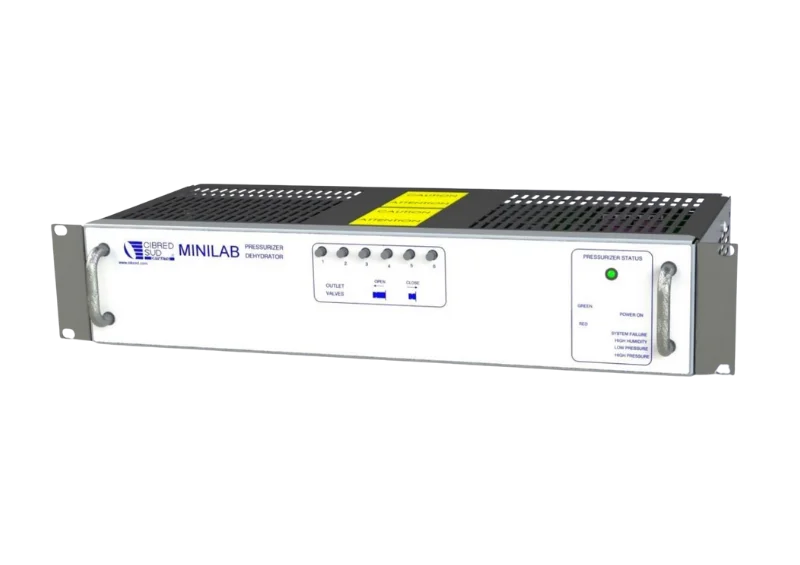

MiniLab Dehydrator from Cibred Sud

When dry air supply is critical, the MiniLab Dehydrator from Cibred Sud impresses with its high efficiency, consistent performance and easy integration into radio, telecoms and broadcast infrastructures. With a flow rate of up to 150 l/h, a dew point better than −45 °C and a factory-preset output pressure of 1–6 kPa, MiniLab reliably protects waveguide and coaxial systems from moisture, corrosion and attenuation losses.

The MiniLab dehydrator delivers a continuous flow of dry air and uses two alternately operating drying chambers with automatic regeneration. Controlled by a microprocessor and speed-controlled pumps, the system minimises mechanical wear, reduces noise and maximises service life – without additional mechanical pressure regulators and their pressure losses. Remote monitoring via SNMP/HTTP over 10/100 Mbit Ethernet is available as an option. Mounting options include wall, floor, 19″ and ETSI N3 rack.

Key Features:

• Flow rate: up to 150 l/h dry air; dew point: better than −45 °C
• Outlet pressure: factory preset 1–6 kPa (standard 2 kPa) possible
• Two pumps and two drying chambers running alternatively; continuous operation
• Microprocessor control & pump speed control for low wear and low noise
• Alarms: low/high pressure, high humidity, power and system faults; local & remote signalling
• Optional remote control through SNMP protocol and HTTP interface by a 10/100 Mbit Ethernet interface
• Mounting: wall, floor, 19″ rack, ETSI N3 racks
• Quiet and efficient: low power consumption and low acoustic noise

Areas of application:

• Radio and telecommunications networks (wave guide feeders, hollow conductors)
• Broadcast & SatCom uplinks/downlinks
• Industrial measurement & RF laboratory environments (coaxial lines)
• Data centres / critical infrastructures with RF cabling

Let our sales engineers advise you.

They are experts in dry air systems for waveguide and coaxial applications and will show you how the MiniLab Dehydrator from Cibred Sud fits perfectly into your infrastructure.
