Mosaic G5 P6 – Septentrio

Ideal for size-constrained applications

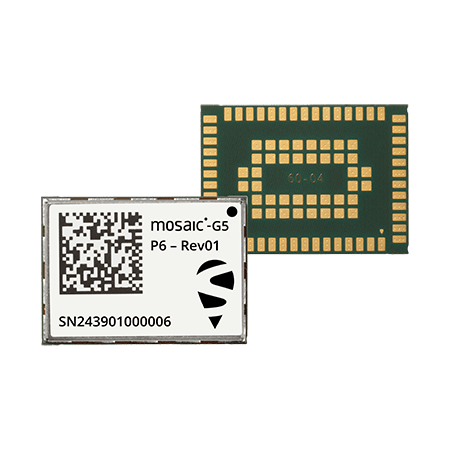

Septentrio mosaic-G5 P6™ is an advanced multi-frequency GNSS receiver module in a low-power surface mount package. It offers heading and pitch or heading and roll angles in addition to high-accuracy positioning, ideal for autonomous navigation. With GNSS+ technology for resilience and reliability, Septentrio is now offering a performance benchmark in mass market GNSS positioning.

This module has low and predictable latency needed for stable and accurate control systems. It is easy to integrate and is compatible with popular open-source autopilots. It is ideal for drones, robots, autonomous systems and space-constrained devices which require accurate positioning with a high degree of resilience and reliability.

Ultra-compact in size and weight

Sized at only 22.8 x 16.4 mm, and with a weight of only 2.2 g the mosaic-G5 P6 has an outstanding size/power to performance ratio. mosaic-G5 P6 has market-leading ultra-low power consumption. It offers full raw data with positioning measurements and Galileo HAS positioning service compatibility.

Multi-frequency & multi-constellation GNSS receiver module

The mosaic-G5 P6 is a quad-band receiver, which makes use of all-in-view GNSS constellations and their signals for optimal availability, even in challenging environments where the view of the sky may be partially obstructed.
